Above-Grade Pump Stations

Description:

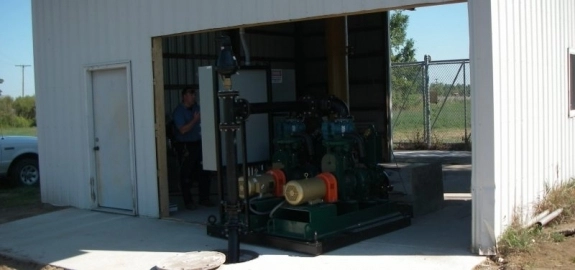

Romtec Utilities designs, fabricates, supplies, and installs above-grade pump stations that can be integrated into a building or installed outside. Engineering pump stations for above-grade applications provides accessibility to mechanical and electrical components and can be successful outdoors with heat treating and other design options. Above-grade pump stations fulfill a wide range of applications from booster pump stations to pump station retrofit systems. These systems are typically skid-mounted, including the electrical control panel, but Romtec Utilities prefabricates all the pump station assemblies to provide a variety of installation options outside of a skid-mounted system configuration. Above-grade pump stations are a great way to provide access to valve assemblies, meter assemblies, and pump motors.

Typical Above-Grade Pump Stations Applications:

Pumping Scenarios

Potable Water Pressure Booster
Pump Station Retrofit
Vertical Turbine Pump Stations
Self-Priming Pump Stations
In-Line Pumping
Bypass Pumping
Water Skimming

Flow Ranges

Low Flow Lift Stations (25 – 100 gpm)
Medium Flow Lift Stations (100 – 300 gpm)
High Flow Lift Stations (300 – 1000 gpm)
Super high flow Lift Stations (1000 – 5000+ gpm)

Configurations

Simplex Pump Configuration
Duplex Pump Configuration
Triplex Pump Configuration
Jockey Pump Configuration
Turbine Pump Configuration
Inline Booster Pumps
Self-Priming Pumps

Design Options:

Structural

Integrated Steel Skids
- Stainless Steel
- Powder Coated
Integrated Control Buildings
- New or Existing
Steel Post Shelters
Concrete Footings
New or Existing Wells
Intake Structures
Discharge Structures
Full System Mounting

Mechanical

Pumps (All Brands Available)
- End Suction Centrifugal
- Vertical Turbine
- Vertical Inline End Suction Pumps
- Vertical Multistage Pumps
Discharge & System Piping
- Any Material
- Custom Piping Headers
Valve Configurations
Operational Valves
- All Types Available
- All Brands Available
Pressure Gauges
Flow Meters
Pressure Tanks

Electrical

Enclosures (Any NEMA Rating)
- Free-Standing
- Wall-Mounted
- Shelter Mounted
- Interior & Exterior
Control Panels (UL Listed)
- Alternator
- Logic Relay
- Programmable Logic Controller (PLC)
- Touchscreen HMI
- Variable Frequency Drives (VFD)
- Soft Starters
- Motor Control Centers
Pressure Transducers
Generators & ATS
- All Brands
- All Fuel Types
