Clean Water & Turbine Pump Stations

Description:

Romtec Utilities designs complete pump stations for clean water pumping applications with all structural, mechanical, electrical, and communication systems included. Romtec Utilities designs clean water pump stations with any required pump technology, including turbine pumps, submersible centrifugal pumps, axial flow pumps, and many more. Romtec Utilities designs clean water and turbine pump stations for many different applications like drinking water, irrigation, groundwater reclamation, and large water features. From deep wells to water intake structures, Romtec Utilities can design and supply your clean water system as a single integrated package. View our system specifications below as well as our complete on-site services and documentation. Contact us today to see how Romtec Utilities can design and supply your complete pumping system.

Typical Clean Water & Turbine Applications:

Pumping Scenarios

  • Potable Water Pumping
  • Deep Well Pumping
  • Pumping for Irrigation
  • To Treatment
  • Pumping Condensate
  • Pump from Treatment to Reuse
  • Maintaining Pressure
  • Pump from Tank to Distribution
  • Pump to Discharge

Flow Ranges

  • Low Flow Lift Stations (50 – 500 gpm)
  • Medium Flow Lift Stations (500 – 2000 gpm)
  • High Flow Lift Stations (2000 – 10000 gpm)
  • Super high flow Lift Stations (10000 – 100000 gpm)

Configurations

  • Simplex Pump Configuration
  • Duplex Pump Configuration
  • Triplex Pump Configuration
  • Submersible Pump Configuration
  • Jockey Pump Configuration
  • Turbine Pump Configuration
  • Split-Case Lift Station
  • Centrifugal Pump Configuration
  • Axial Flow Pump Configuration

Design Options:

Structural

  • Wet Wells
    • Round Precast Concrete 4’ ID to 12’ ID
    • Rectangular Precast Concrete 4’x4’ to 10’x24’
    • Round Fiberglass 4’ ID to 12’ ID
    • Round Double Wall Fiberglass 6’ ID to 12’ ID
    • Round Carbon Steel 3’ ID to 12’ ID
    • Epoxy Spray-On Coatings
    • Ameron PVC T-Lock for Concrete
  • Prefabricated Valve Vaults (All Sizes)
  • Prefabricated Meter Vaults (All Sizes)
  • Buildings & Architectural
    • CMU Block
    • Wood Framed
    • Any size
    • Customizable Floor Plans

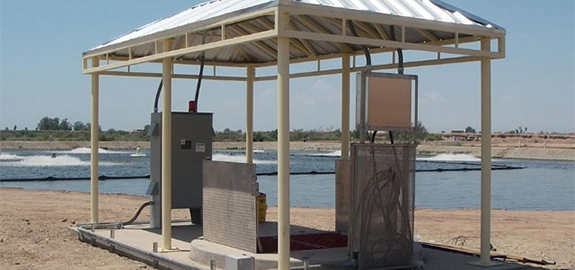

    • 2-post, 4-post, & 6-post Shelters

Mechanical

  • Pumps (All Brands Available)
    • End Suction Centrifugal
    • Vertical Turbine
    • Vertical Inline End Suction Pumps
    • Vertical Multistage Pumps
    • Axial Flow Pumps
    • Jockey Pumps
  • Discharge & System Piping
    • Any Material
    • Custom Piping Headers
  • Valve Configurations
    • Above-Grade
    • Below-Grade
    • In-well
  • Operational Valves
    • All Types Available
    • All Brands Available
  • Hatches (Aluminum & Steel)
    • Pedestrian Rated
    • H-20 Occasional Traffic Rated
    • H-20 Full Traffic Rated
    • Aircraft Rated
  • Pressure Gauges
  • Flow Meters
  • Pressure Tanks

Electrical

  • Enclosures (Any NEMA Rating)
    • Free-Standing
    • Wall-Mounted
    • Shelter Mounted
    • Interior & Exterior
  • Control Panels (UL Listed)
    • Alternator
    • Logic Relay
    • Programmable Logic Controller (PLC)
    • Touchscreen HMI
    • Variable Frequency Drives (VFD)
    • Soft Starters
  • Level Sensing
    • Pressure Transducers
    • Ultrasonic
    • Floats
    • Conductive Probes
    • Radar
    • Air Bubbler
  • Generators & ATS
    • All Brands
    • All Fuel Types

Communications

  • Telemetry
    • Autodialer
    • Radio Modem
    • Cellular Modem
    • Ethernet
    • Fiber Optics
    • Dry Contacts
  • SCADA Integration

Free On-Site Services

  • Construction Advisor
  • Lift Station Start-Up
  • Personnel and Staff Training

Related Products and Services:

Flow Meter Assemblies

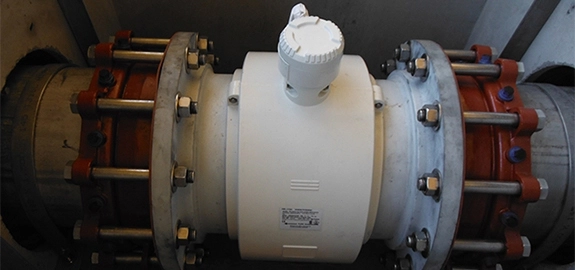

Flow Meter in a Romtec Utilities System

Inlet/Outlet Structures

Bar Screen Intake Line

Booster Pump Stations

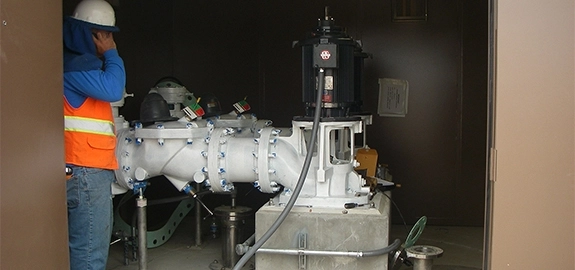

Booster Pump Station Project
