Inlet/Outlet Structures

Description:

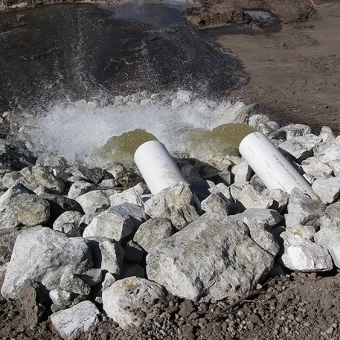

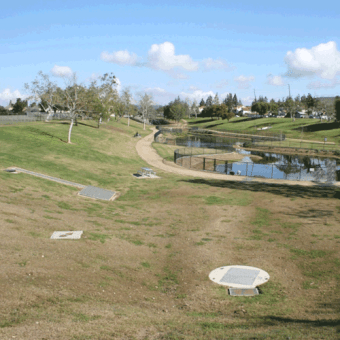

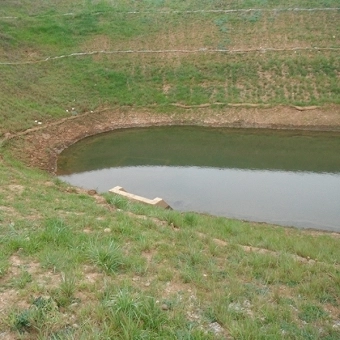

Inlet and Outlet Structures are water control devices that can be very simple structural units or sophisticated mechanical systems. Romtec Utilities designs and supplies inlet and outlet structures for all types of applications like erosion control, solids screening, turbulence reduction, and many other common purposes. Romtec Utilities meets any applicable design standards for these components. Romtec Utilities also provides complete documentation, as-built drawings, and warranties on any required inlet or outlet structure, particularly for those with augers, macerators, and other mechanical devices.

Specifications:

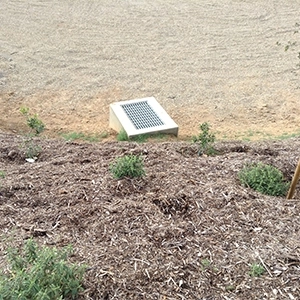

Square & Rectangular Screened Intakes

  • Precast Concrete-2’x2’ to 3’x6’
  • Carbon Steel-2’x2’ to 2’x4’
  • Flat and Sloped Tops
  • Available in Pedestrian and Traffic Rated

Headwall and Endwall Structures

  • Precast Concrete
  • Pipes 6” to 36”
  • Height and Width Sized to Match Pipe Sizes

Bar Screen Vaults

  • Precast Concrete Rectangular- 4’x4’ to 10’x24’
  • Precast Concrete Round – 4’ to 12’
  • Carbon Steel, Galvanized Steel, and Stainless Steel Bar Screen Materials
  • Fish Friendly Screens
  • Removable Screens
  • Access Ladders
  • Pedestrian and Traffic Rated Hatches and Top Slabs
