Control Panels

Description:

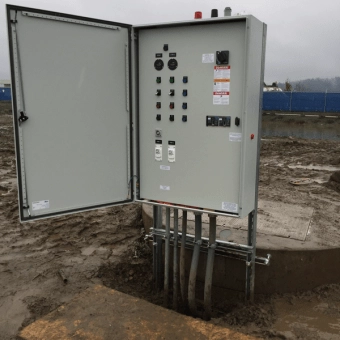

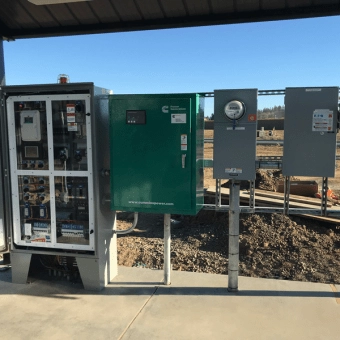

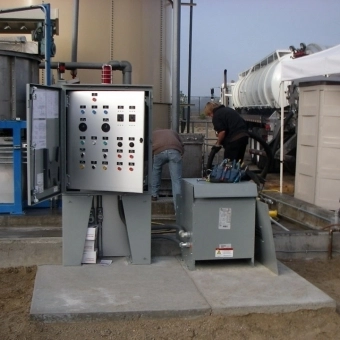

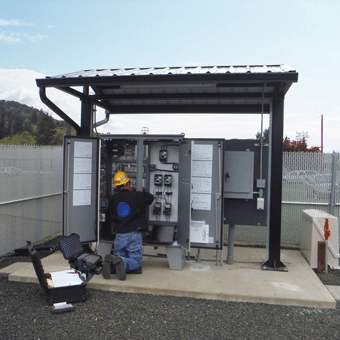

Romtec Utilities designs UL Listed control panels for use in all types of pumping applications. The control panels can be as simple as alternating relays and as complex as industrial grade program logic controllers (PLC’s) with color human machine interfaces (HMI’s). Romtec Utilities can design and supply control panels to meet any site-specific requirements for any water type.

Typical Control Panel Applications:

Pumping Scenarios

  • Wastewater
  • Stormwater
  • Clean Water
  • Irrigation Systems
  • Industrial Water
  • Flood Control
  • Booster Stations

Flow Ranges

  • Low Flow Lift Stations (50 – 500 gpm)
  • Medium Flow Lift Stations (500 – 2000 gpm)
  • High Flow Lift Stations (2000 – 10000 gpm)
  • Super high flow Lift Stations (10000 – 100000 gpm)

Configurations

  • Simplex Pump Configuration
  • Duplex Pump Configuration
  • Triplex Pump Configuration
  • Quadplex Pump Configuration
  • Submersible Pump Configuration
  • Jockey Pump Configuration
  • Turbine Pump Configuration
  • Split-Case Lift Station
  • Self-priming Pump Configuration
  • Centrifugal Pump Configuration
  • Axial Flow Pump Configuration

Design Options:

Enclosure Types

  • NEMA 3R
  • NEMA 4(x)
  • NEMA 6P
  • NEMA 8
  • NEMA 12
  • Free-Standing
  • Wall-Mounted
  • Shelter Mounted
  • Interior and Exterior

Controller Types

  • Alternators
  • Smart Relays
  • Program Logic Controllers (PLC)
    • Allen Bradley
    • Siemens
    • Unitronics
    • SCADAPack
    • Any Brand
  • Touchscreen Human Machine Interfaces (HMI)
  • Proprietary Controllers
    • MultiSmart
    • Hydroranger
    • PC-3000XC
    • Any Brand
  • Variable Frequency Drives
  • Soft Starters
  • Level Sending
    • Pressure Transducers
    • Ultrasonic
    • Floats
    • Conductive Probes
    • Radar
    • Air Bubbler

Communications

  • Telemetry
    • Autodialer
    • Radio Modem
    • Cellular Modem
    • Ethernet
    • Fiber Optics
    • Dry Contacts
  • SCADA Integration
  • Flashing Lights and Alarm Horns

Free On-Site Services

  • Lift Station Start-Up
  • Personnel and Staff Training
