Motor Control Center (MCC)

Description:

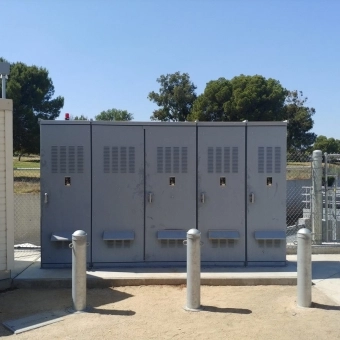

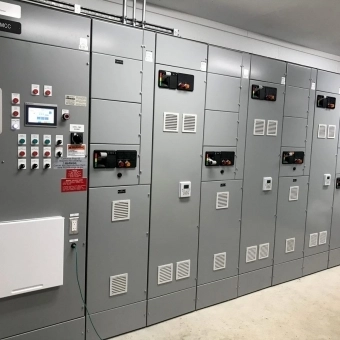

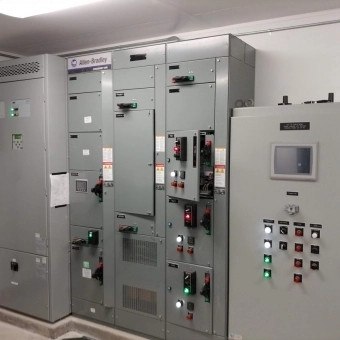

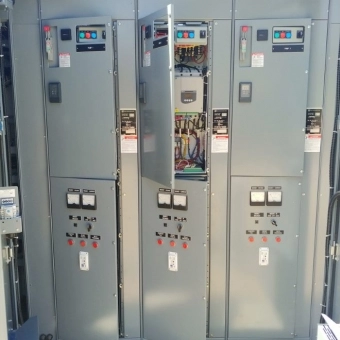

Romtec Utilities designs UL845 Listed Motor Control Centers (MCC) for use in all types of pumping applications. A motor control center (MCC) is an assembly to control electric motors in a central location. It consists of multiple enclosed sections having a common power bus and with each section containing a combination starter, which in turn consists of motor starter (soft starters or variable frequency drives), fuses or circuit breaker, and power disconnect. In addition, the MCC can house the pump controls along with with the generator automatic transfer switch if required.

Typical Motor Control Center Applications:

Applications

  • Wastewater
  • Stormwater
  • Clean Water
  • Irrigation Systems
  • Industrial water
  • Flood Control
  • Booster Stations

Flow Ranges

  • Low Flow Lift Stations (50-500 gpm)
  • Medium Flow Lift Stations (500 – 2000 gpm)
  • High Flow Lift Stations (2000 – 10000 gpm)
  • Super High Flow Lift Stations (10000 gpm – 100000 gpm)

Configurations

  • Simplex Pump Configuration
  • Duplex Pump Configuration
  • Triplex Pump Configuration
  • Quadplex Pump Configuration
  • Submersible Pump Configuration
  • Jockey Pump Configuration
  • Turbine Pump Configuration
  • Split-Case Lift Station
  • Self-priming Pump Configuration
  • Centrifugal Pump Configuration
  • Axial Flow Pump Configuration

Design Options:

Controller Option (All Brands Available)

  • Eaton
  • Schneider Electric (Square D)
  • Any Manufacturer

Major Manufacturers

  • NEMA 1
  • NEMA 3R
  • NEMA 8
  • Free-Standing
  • Shelter Mounted
  • Interior and Exterior

Enclosure Types

  • Alternators
  • Smart Relays
  • Program Logic Controllers
    • Allen Bradley
    • Siemens
    • Unitronics
    • SCADAPack
    • Any Brand
  • Touchscreen Human Machine Interfaces (HMI)
  • Proprietary Controllers
    • MultiSmart
    • Hydroranger
    • PC-3000XC
    • Any Brand
  • Variable Frequency Drives
  • Soft Starters
  • Level Sending
    • Pressure Transducers
    • Ultrasonic
    • Floats
    • Conductive Probes
    • Radar
    • Air Bubbler

Communications

  • Telemetry
    • Autodialer
    • Radio Modem
    • Cellular Modem
    • Ethernet
    • Fiber Optics
    • Dry Contacts
  • SCADA Integration
  • Flashing Lights and Alarm Horns

Free On-Site Services

  • Lift Station Start-Up
  • Personnel and Staff Training
