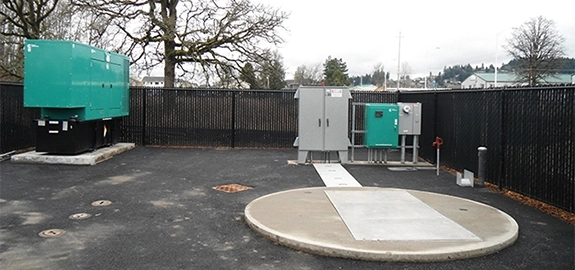

Stormwater Pump Stations

Description:

Romtec Utilities designs complete stormwater pump stations for all applications, including all the structural, mechanical, electrical, and communication systems required. Our stormwater pump stations can be configured for either high-flow or low-flow scenarios. Romtec Utilities can also design stormwater products with several cost-saving techniques, including flooded inlet lines, jockey pumps, and the use of lower horsepower pumps to meet the required pumping rate. Romtec Utilities provides any brand of pump or other components you prefer and site-specific features such as flow meters, intake and outlet structures, parallel force mains, and more. We work with our clients to design and supply stormwater pump stations that are affordable and functional and that meet the environmental standards of all 50 states.

Typical Stormwater Applications:

Pumping Scenarios

  • Empty a Detention Pond

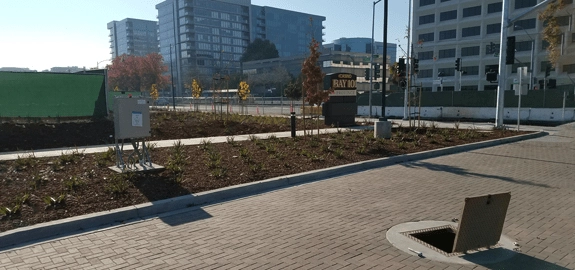

  • Stormwater Management
  • Pump Stormwater Runoff
  • Pump Oily Water
  • Flood Control Pumping
  • Stormwater Collection

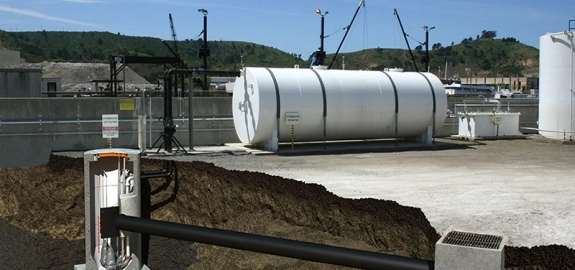

  • Industrial Runoff Pumping
  • Pump to a Retention Pond
  • Storm Drain Pumping
  • Pump to Discharge

Flow Ranges

  • Low Flow Lift Stations (50 – 500 gpm)
  • Medium Flow Lift Stations (500 – 2000 gpm)
  • High Flow Lift Stations (2000 – 10000 gpm)
  • Super high flow Lift Stations (10000 – 100000 gpm)

Configurations

  • Simplex Pump Configuration
  • Duplex Pump Configuration
  • Triplex Pump Configuration
  • Submersible Pump Configuration
  • Jockey Pump Configuration
  • Turbine Pump Configuration
  • Split-Case Lift Station
  • Wet-Dry Configuration
  • Grinder Pump Configuration
  • Chopper Pump Configuration
  • Solids Handling Pump Configuration
  • Centrifugal Pump Configuration

Design Options:

Structural

  • Wet Wells
    • Round Precast Concrete 4’ ID to 12’ ID
    • Rectangular Precast Concrete 4’x4’ to 10’x24’
    • Round Fiberglass 4’ ID to 12’ ID
    • Round Double Wall Fiberglass 6’ ID to 12’ ID
    • Round Carbon Steel 3’ ID to 12’ ID
    • Epoxy Spray-On Coatings
    • Ameron PVC T-Lock for Concrete
  • Prefabricated Valve Vaults (All Sizes)
  • Prefabricated Meter Vaults (All Sizes)
  • Buildings & Architectural
    • CMU Block
    • Wood Framed
    • Any size
    • Customizable Floor Plans
    • 2-post, 4-post, & 6-post Shelters

Mechanical

  • Pumps (All Brands Available)
    • Centrifugal Submersible
    • Self-Priming
    • Vertical Wet Well
    • Axial Flow
    • Vertical Turbine
    • Jockey Pumps
  • Discharge & System Piping
    • Any Material
    • Custom Piping Headers
  • Valve Configurations
    • Above-Grade
    • Below-Grade
    • In-well
  • Operational Valves
    • All Types Available
    • All Brands Available
  • Hatches (Aluminum & Steel)
    • Pedestrian Rated
    • H-20 Occasional Traffic Rated
    • H-20 Full Traffic Rated
    • Aircraft Rated

Electrical

  • Enclosures (Any NEMA Rating)
    • Free-Standing
    • Wall-Mounted
    • Shelter Mounted
    • Interior & Exterior
  • Control Panels (UL Listed)
    • Alternator
    • Logic Relay
    • Programmable Logic Controller (PLC)
    • Touchscreen HMI
    • Variable Frequency Drives (VFD)
    • Soft Starters
  • Level Sensing
    • Pressure Transducers
    • Ultrasonic
    • Floats
    • Conductive Probes
    • Radar
    • Air Bubbler
  • Generators & ATS
    • All Brands
    • All Fuel Types

Communications

  • Telemetry
    • Autodialer
    • Radio Modem
    • Cellular Modem
    • Ethernet
    • Fiber Optics
    • Dry Contacts
  • SCADA Integration

Free On-Site Services

  • Construction Advisor
  • Lift Station Start-Up
  • Personnel and Staff Training
