Romtec Utilities designed, manufactured, and supplied a federal wastewater lift station replacement for Green Ridge Campground, a U.S. Forest Service campground near Grand Lake, Colorado.

The existing sewer lift station had reached the end of its service life. As a result, the campground needed a reliable replacement system for visitors using the campground, boat launch, and RV sites. Romtec Utilities worked with the project team to develop a site-specific lift station package. The package met the pumping requirements, project budget, and federal owner expectations.

Green Ridge Campground is located about 12 miles northwest of Granby on the shores of Shadow Mountain Reservoir. The U.S. Forest Service campground serves visitors southwest of Grand Lake in Grand County, Colorado, who come to the area for boating, fishing, hiking, camping, and access to nearby Rocky Mountain National Park.

Grand Lake sits at an elevation of about 8,369 feet and had a 2020 Census population of 410. Because of its mountain setting, seasonal tourism, and public recreation infrastructure, the campground needed dependable wastewater pumping to stay operational.

The U.S. Forest Service contacted Romtec Utilities for preliminary design support and budgetary pricing for a replacement wastewater lift station at Green Ridge Campground.

Romtec Utilities provided competitive pricing to project bidders. Tusca KS Inc. then included the Romtec Utilities package in its winning proposal. After award, Tusca KS Inc. worked with Romtec Utilities to finalize the approved design and deliver the complete lift station supply package for the federal wastewater lift station.

This approach gave the U.S. Forest Service competitive pricing, coordinated design support, and a complete system package for the replacement sewer lift station serving the campground’s wastewater infrastructure.

Green Ridge Campground includes 79 non-electric campsites for tents, trailers, and RVs. Additional amenities include picnic tables, campfire rings, flush and vault toilets, drinking water, a boat ramp, and a dock. Because the campground sits between Shadow Mountain Reservoir and the Colorado River, it needed a wastewater lift station that could handle seasonal use and changing visitor demand.

Romtec Utilities configured the campground wastewater lift station to meet the site’s medium sewage flow requirements and support reliable pumping for campground facilities.

To meet these conditions, the system included duplex submersible solids-handling pumps, an inlet line drop bowl, and an in-ground valve vault. The package included a UL-listed control panel with float controls, an autodialer, and a basic alarm. The project team mounted the control panel on the exterior wall of an existing building.

The federal wastewater lift station pumps up to 120 gallons per minute against 90 feet of total dynamic head.

Romtec Utilities coordinated with the U.S. Forest Service to design a replacement wastewater lift station that matched the campground’s pumping needs, site conditions, and maintenance expectations.

In addition, Romtec Utilities designs, manufactures, and supplies site-specific wastewater lift stations for campgrounds, trailheads, parks, and public recreation facilities across the United States. Romtec Utilities accounts for flow conditions, local codes, sewer infrastructure, controls, alarms, and the project’s operating environment.

Romtec Utilities supplied the complete wastewater lift station package for this campground sewer lift station replacement. The company supports campground projects nationwide and often coordinates with sister company Romtec, Inc., which provides site-built restrooms, concession buildings, pavilions, and other public recreation structures.

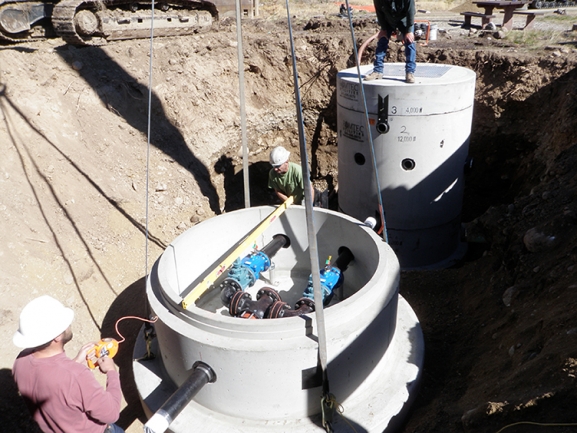

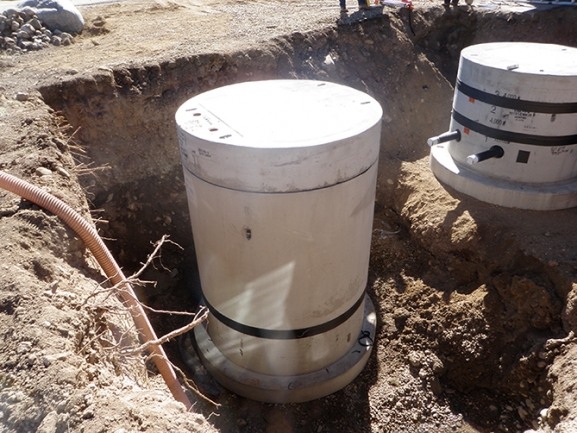

During installation, Romtec Utilities sent an installation advisor and start-up technician to Grand Lake. The technician supported installation, commissioning, and training. This field support helped verify that the contractor installed the system according to the approved design and gave the maintenance team clear guidance on the lift station and control system.

In addition, Romtec Utilities simplified warranty support by supplying the complete system package. With one source for the lift station components and warranty process, the owner gained a more streamlined path for service questions, documentation, and long-term system support.

Before delivery, Romtec Utilities manufactured and tested the system. Prefabrication helped reduce construction time, labor, equipment needs, and on-site coordination. It improved quality control and shortened the installation timeline.

Campground wastewater lift stations need to handle seasonal flow changes, visitor demand, solids, maintenance access, and remote operating conditions. For long-term operation, Romtec Utilities evaluates these details during design so each pump station fits the site and owner requirements.

• Size the lift station around restroom flows, peak campground use, and future capacity needs.
• Select pumps and safeguards that can manage solids and reduce operational risk.
• Coordinate controls, alarms, and maintenance access with owners, engineers, contractors, and operators.
• Confirm total dynamic head requirements and match the pump selection to the force main conditions.
• Design the sewer lift station around existing utilities, restroom locations, site access, and construction constraints to reduce disruption.

For this Grand Lake project, Romtec Utilities delivered a site-specific replacement sewer lift station that supported a federal campground, protected public recreation infrastructure, and helped the owner maintain dependable wastewater service in a high-use mountain environment.
