For this navy wastewater lift station, we provided a new pump station for the Lakehurst Naval Air Station that featured Weil Slicer pumps. We worked with DJs Mechanical and Pennoni Associates to provide this navy wastewater lift station for the naval base in New Jersey, where a variety of operations happen like aircraft launch and recovery equipment trainings.

Romtec Utilities worked to make this wastewater lift station cost effective and that is why we were selected to provide the design and supply of the system. We were able to reduce the overall cost through value engineering.

Lakehurst is a borough within Ocean County, in New Jersey not far from the Atlantic Ocean coastline. It is about 14 miles from the beaches in Seaside Heights.

The Navy Lakehurst Historical Society provides education and history on the hangars and air ships that were once common in Lakehurst in the 1900’s. Many U.S. Navy blimps called the Naval Air Station Lakehurst home. The base was the first international airport in the U.S.

Lakehurst is also home to the Lakehurst Naval Air Station, which is part of the Joint Base McGuire-Dix-Lakehurst where the Naval Air Warfare Center Aircraft Division Lakehurst is located. It is a US Air Force joint base and is under the 87th Air Base Wing. A variety of operations take place at the base including aircraft launch and recovery equipment.

Romtec Utilities began this project working with DJs Mechanical out of Millstone Township, New Jersey. DJs Mechanical is a mechanical contractor, and proficient in all facets of HVAC, with services such as heat exchangers, condensate receivers, boilers, chillers, and much more based in Millstone Township, New Jersey.

The project was for this new wastewater lift station for the Lakehurst portion of the Joint Base McGuire-Dix-Lakehurst near Trenton, New Jersey.

This wastewater lift station was designed to meet the standards of the Lakehurst Naval Air Station while remaining cost effective.

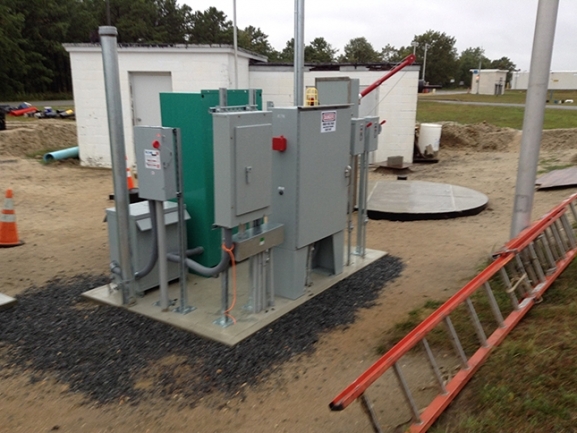

A duplex pump configuration utilized submersible 7.5 HP Weil Slicer Pumps to handle suspended solids in the sewage. A UL listed control panel was designed and manufactured in a NEMA 4 enclosure for outdoor operation. Nolta floats were used for the in-well liquid level sensing. The below-grade structural components were designed and supplied precast concrete vaults painted with a marine epoxy exterior coating to prevent moisture incursion.

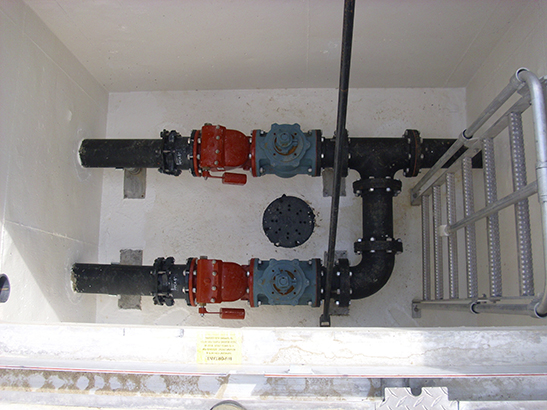

The stormwater pump lift station features 8′ diameter wet well, 6″ discharge piping, 7.5HP Weil Slicer pumps, 6″ – 6′ X 8′ valve vault, EJ H-20 rates safety hatch, Thern portable davit crane, TPS hymax couplings, Nolta MS1 level controller, AVK check valves, Valmatic plug valves, and Cummins generator.

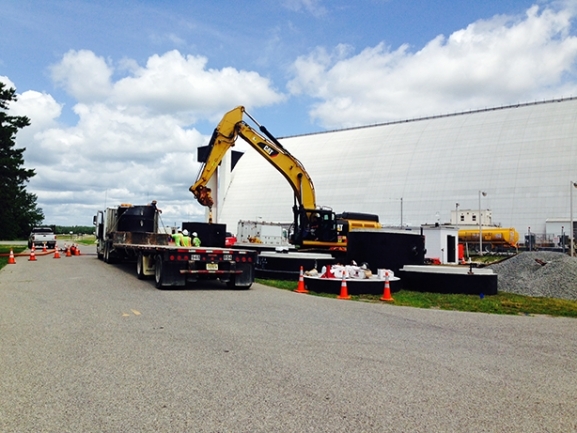

Romtec Utilities also worked with the site engineer, Pennoni Associates. Garden State Precast supplied the concrete components of the lift station to reduce the cost of the project for the Naval Air Station. Garden State Precast is a precast plant that offers a complete range of concrete products built to exact specifications based in Wall Township, New Jersey which isn’t far from the Lakehurst Naval Air Station.

Pennoni Associates is an ENR Top 500 consulting engineering firm, who partners with clients to design innovative engineering solutions for many markets and project types.

Romtec Utilities was selected for the design and supply of this lift station based on the ability to reduce the overall cost of the system. Romtec Utilities was also able to offer complete on-site services for Lakehurst including start-up, testing, training, and a complete system warranty.

For all over our pump stations, we send an onsite technician upon installation of the system to ensure it’s installed per the design. The tech also provides commissioning and training of maintenance personnel. The system comes with a robust warranty and since we’re the single source provider, we handle the entire process. We are your single source provider for the entire wastewater pump station to fit your projects specific pumping needs.

We were proud to provide this navy wastewater lift station for the Lakehurst Naval Air Station as part of the Joint Base McGuire-Dix-Lakehurst in Lakehurst, New Jersey. This pump station is a prime example of a project where we worked to save cost on the overall system for the customer.

If you want to get started on your wastewater lift station, contact us today where we can design it to fit your specific site and pumping needs!
